Are you looking for an active loudspeaker that combines power, value, and versatility? Look no further than Wharefedale Pro's latest Tourus series of plastic active loudspeakers!
FEATURES:
- On stage, DJ, bands and performance
- Bluetooth, TWS models with MP3 player
- Bi-amplified
- Wharfedale Pro drivers
- Portable and powerful
- Huge power output
- RCA, XLR and Jack inputs
- M8 rigging points
- Optional soft covers
SPECIFICATIONS:
| System Type | Active 15" 2-way Bi-Amplified |
| Frequency Response ( /-3dB) | 50-20 KHz |
| Sensitivity @ 1w / 1m | 97dB |
| Maximum SPL (peak @1m) | 130dB |
| Low Frequency Transducer | |
| Size (mm / inches) | 381 mm / 15” |
| Coil Size (mm / inches) | 50.8mm / 2.0" |
| Impedance | 4Ω |
| High Frequency Transducer | |
| Type | Compression Driver |
| Coil Size (mm / inches) | 44.5mm / 1.75" |
| Exit Size (mm / inches) | 25mm / 1" |
| Diaphragm Material | Titanium |
| Impedance | 8Ω |
| High Frequency Coverage (H x V) | 90° x 60° |
| Amplifiers | |
| LF Power Amplifier (Class D) | 350w Continuous / 700w Peak |
| HF Power Amplifier (Class AB ) | 100w Continuous / 200w Peak |
| Crossover Frequency | HI PASS 2.4kHz LOW PASS 2.4kHz |
| Equalization | /-12dB Gain for bass and treble |
| Power On Protection | Power switch on / off mute |
| Thermal Protection | Amplifier shutdown, auto reset |
| Driver, DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Power Indicator | Green LED |
| Input type | Balanced / BT / USB |
| Input Connectors | 2 x TRS JACK, 2 x RCA AND 2 x XLR |
| Input Impedance | 47KΩ Balanced |
| Maximum Input Level | 5V |
| Line Input Sensitivity | -10dB |
| Mic Input Sensitivity | -40dB |
| Line Output Connector | Male XLR |
| Power Supply | SMPS |
| AC Power Options | 100V-120V and 220V-240V |
| Power On Indicator | LED / Illuminated front logo |
| Rigging / Bracket / Mounting Options | 4 x M8 |
| 35mm Pole-mount with lock screw | |
| 3 handles (2 on sides, 1 on top) | |
| Optional wall bracket (WPB-2) | |
| Enclosure | |
| Enclosure Material | Injection Moulded Polypropylene |
| Colour | Black |
| Grille | 1.2mm steel |
| Dimensions (Unpacked) | |
| Height | 693mm / 27.3" |
| Width - Front | 455mm / 17.9" |
| Width - Rear | 262mm / 10.3" |
| Depth | 401.8mm / 15.1" |
| Dimensions (packed) | |
| Height | 762mm / 30.0" |
| Width | 4508mm / 20.0" |
| Depth | 425mm / 16.7" |
| Weight | |
| Net Weight (kg / lbs) | 119.2kg / 42.2lbs |
| Gross Weight (kg / lbs) | 22.0kg / 48.4lbs |
HOW IT WORKS:

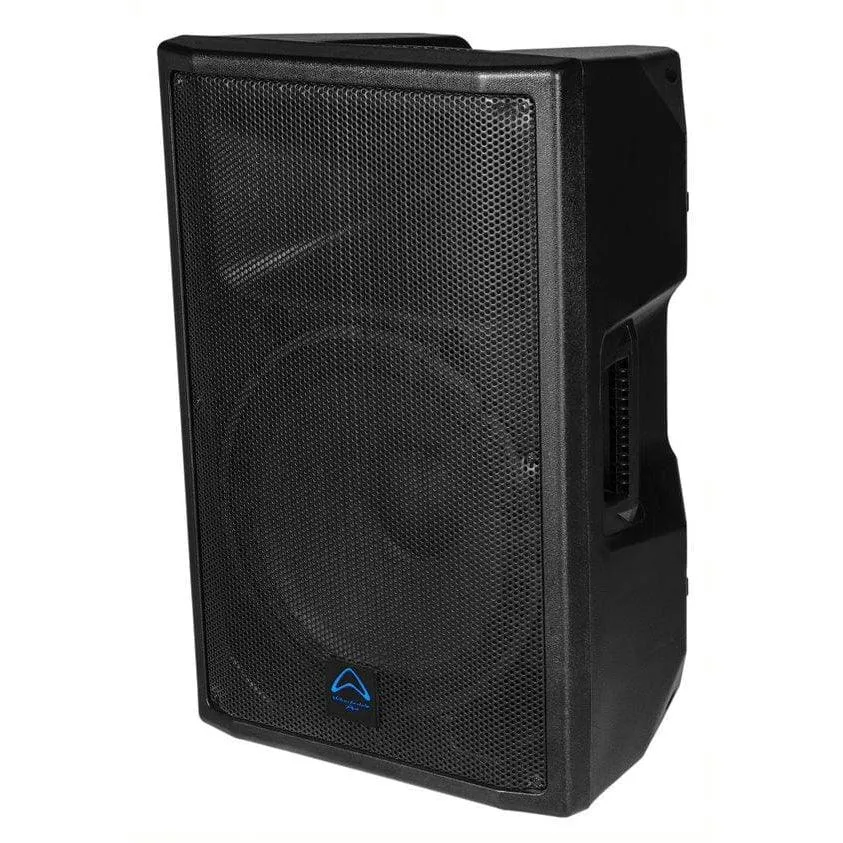

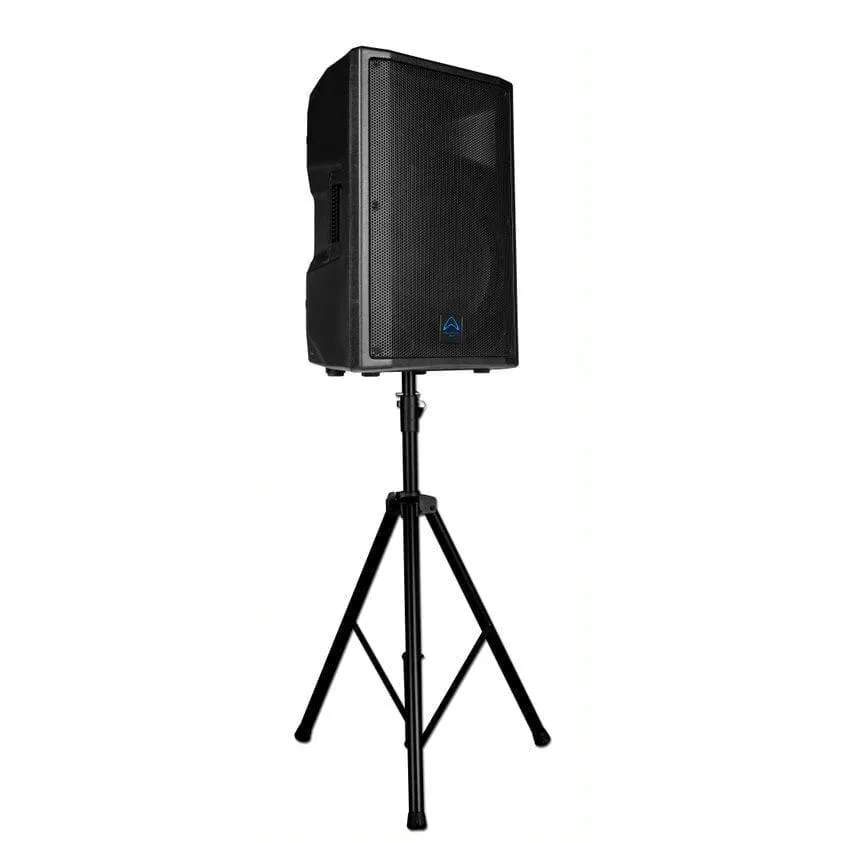

The Tourus-AX15BT active loudspeaker is bi-amplified with a 15" low frequency transducer and a compression driver with a titanium diaphragm for high frequency. It has a range of inputs and connectors, including balanced/BT/USB, 2 x TRS JACK, 2 x RCA, and 2 x XLR. It also has a frequency response of 50-20 KHz and a maximum SPL of up to 130dB. It comes with two amplifiers - a 350w Continuous / 700w Peak LF Power Amplifier (Class D) and a 100w Continuous / 200w Peak HF Power Amplifier (Class AB). It has a power switch on/off mute, amplifier shutdown, auto reset, driver, DC and short protection, and a limiter indicator.
PRODUCT FAQ:
Q: What type of loudspeaker is the Tourus-AX15BT?
A: The Tourus-AX15BT is an active 15" 2-way bi-amplified loudspeaker.
Q: What type of amplifiers does the loudspeaker come with?
A: The loudspeaker comes with a 350w Continuous / 700w Peak LF Power Amplifier (Class D) and a 100w Continuous / 200w Peak HF Power Amplifier (Class AB).
Q: What type of inputs and connectors does the loudspeaker have?
A: The loudspeaker has balanced/BT/USB, 2 x TRS JACK, 2 x RCA, and 2 x XLR inputs and connectors.
