Mini Blade / Midi Fuse / Relay Box

Provides efficient power distribution in a compact & weather resistant form.

Accepts: 6 x Mini Fuses/Mini bladed circuit breakers ( 2 x Spare Slots)

                 2 x 5 Pin Mini Relays

                 1 x Midi Fuse

Mounting: 3 x Mounting Tabs with 6mmØ

Block & Cover: Black thermoplastic

Midi Input/Output: 4 x M5 (Bolts & Washers included)

Relay Terminals: 10 x 6.3mm Female (1.5 - 2.5mm²)

Fuse Terminals: 12 x 2.8mm Female (1.5 - 2.5mm²)

Temperature Rating: -40°C to 125°C (Body only)

Dimensions: W75mm x D85mm x H80mm (Not including mounting tabs)

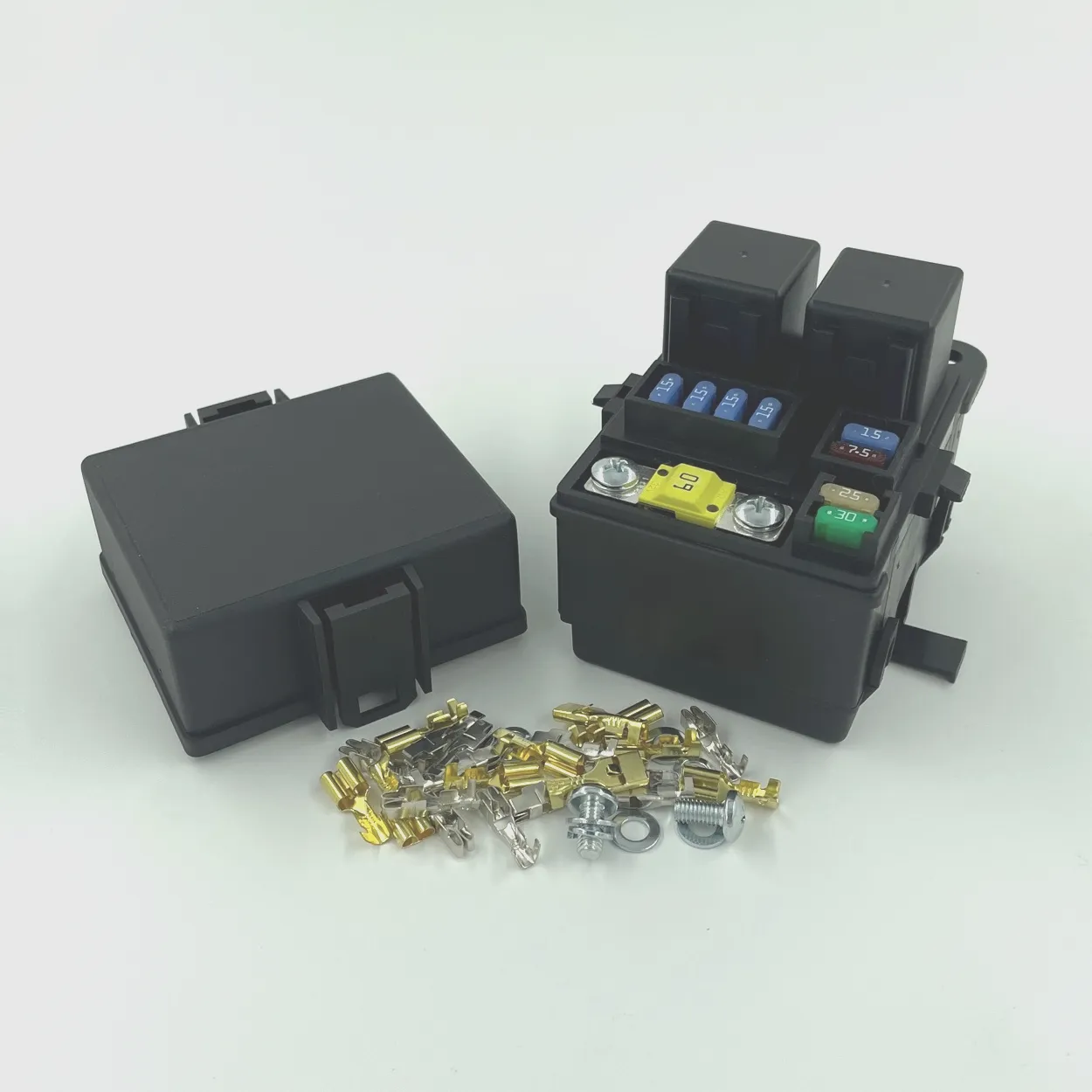

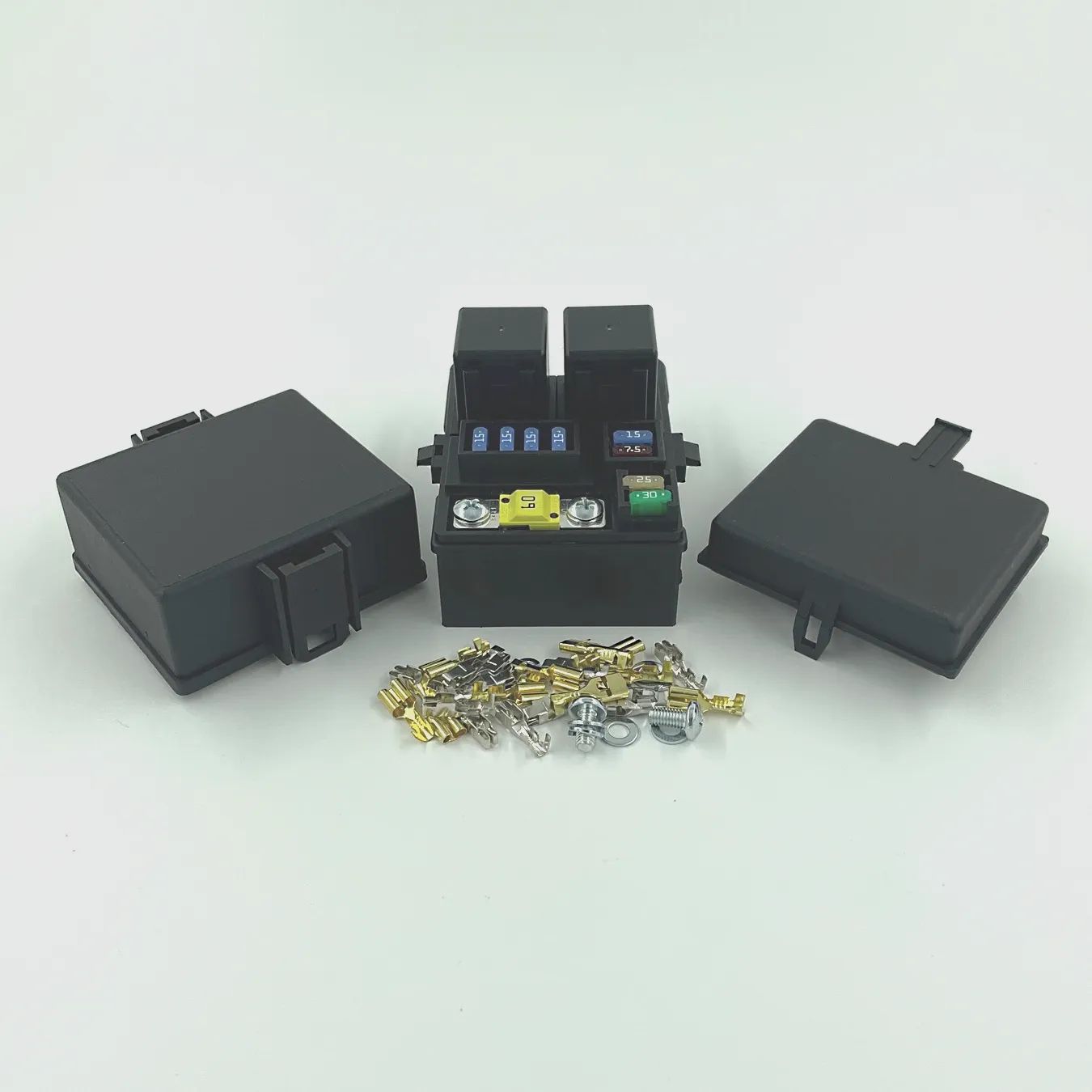

All terminals & fasteners included in kit.

All fuses, circuit breakers and relays not included in kit (Shown for illustration purposes only)
