The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models
Key Performance Factors
Modern MTB Design
Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
Off-Road Control
New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.
Light and Durable
All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
| Sizes | 27.5: XS, S 29: S, M, L, XL |
| Colors | Beeswax, Panther |
| Frame | ALUXX-Grade aluminium, disc |

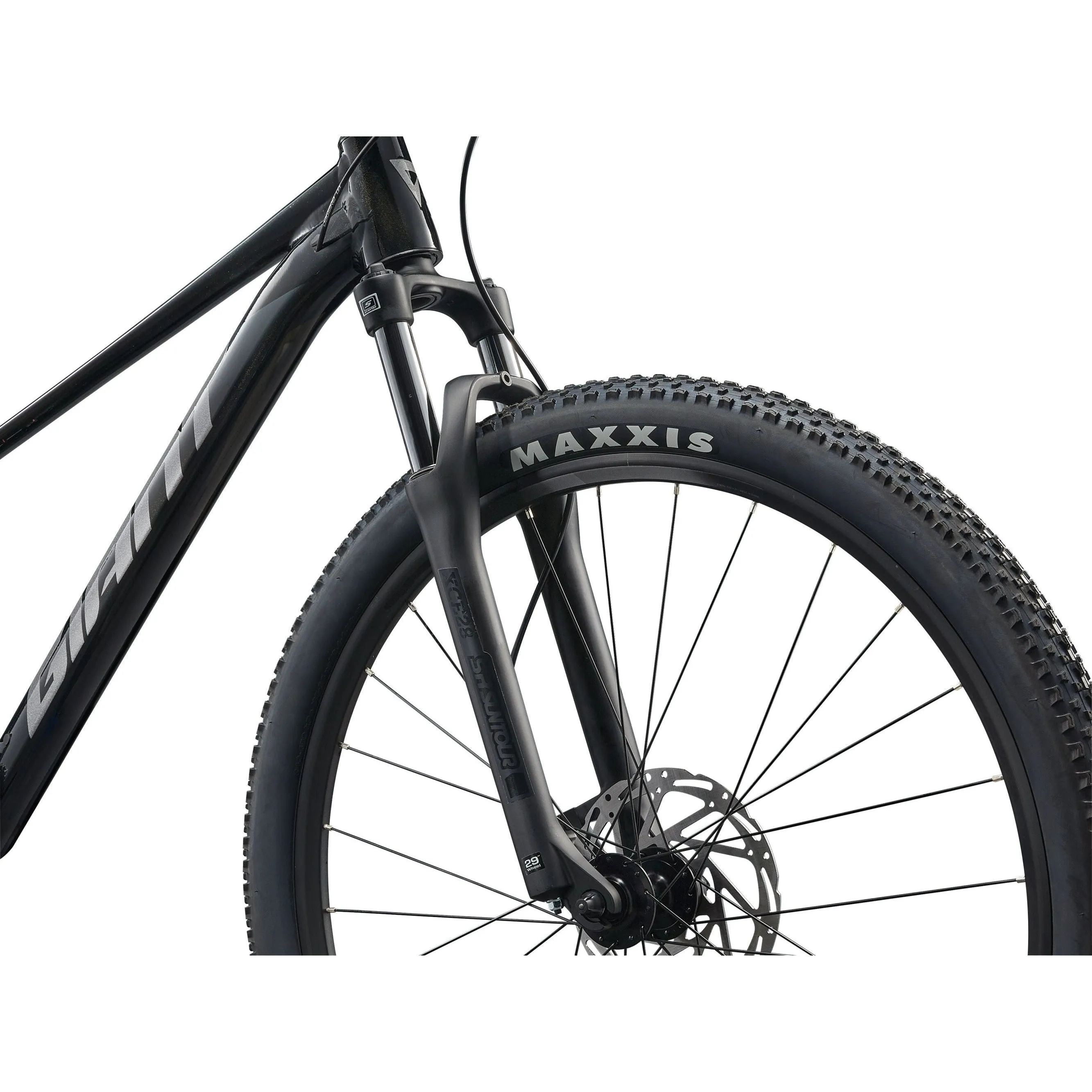

| Fork | SR Suntour XCE 28, coil spring, QR, steel steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29) XL: 100mm travel (29) |
| Shock | N/A |

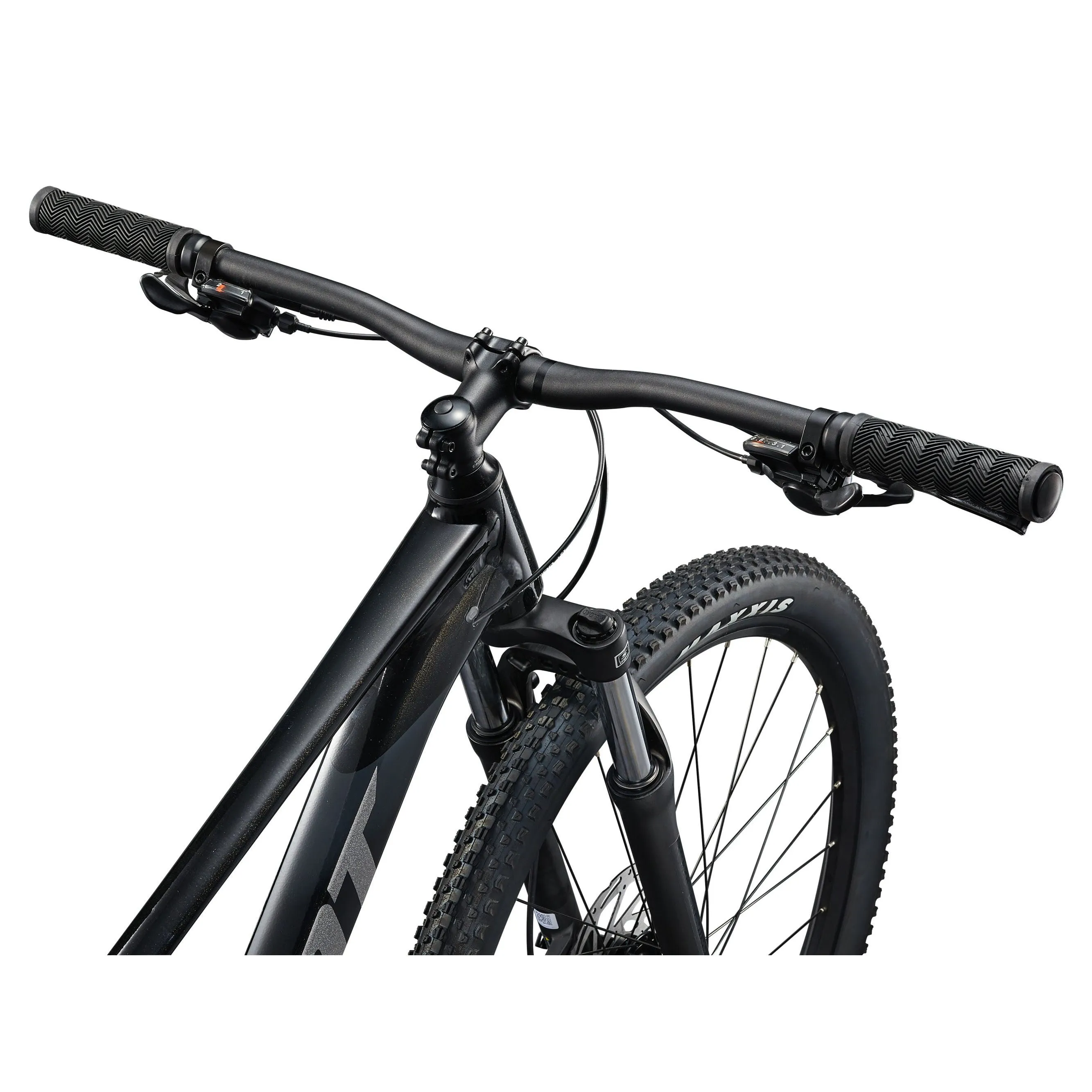

| Handlebar | Giant Connect Trail, 31.8mm |
| Grips | Giant Sole-O |
| Stem | Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) |
| Seatpost | Giant Sport, 30.9mm |
| Saddle | Giant ErgoContact Trail |
| Pedals | MTB caged |
| Shifters | Shimano Acera, 2x8 |
| Front Derailleur | Shimano Acera |
| Rear Derailleur | Shimano Acera |

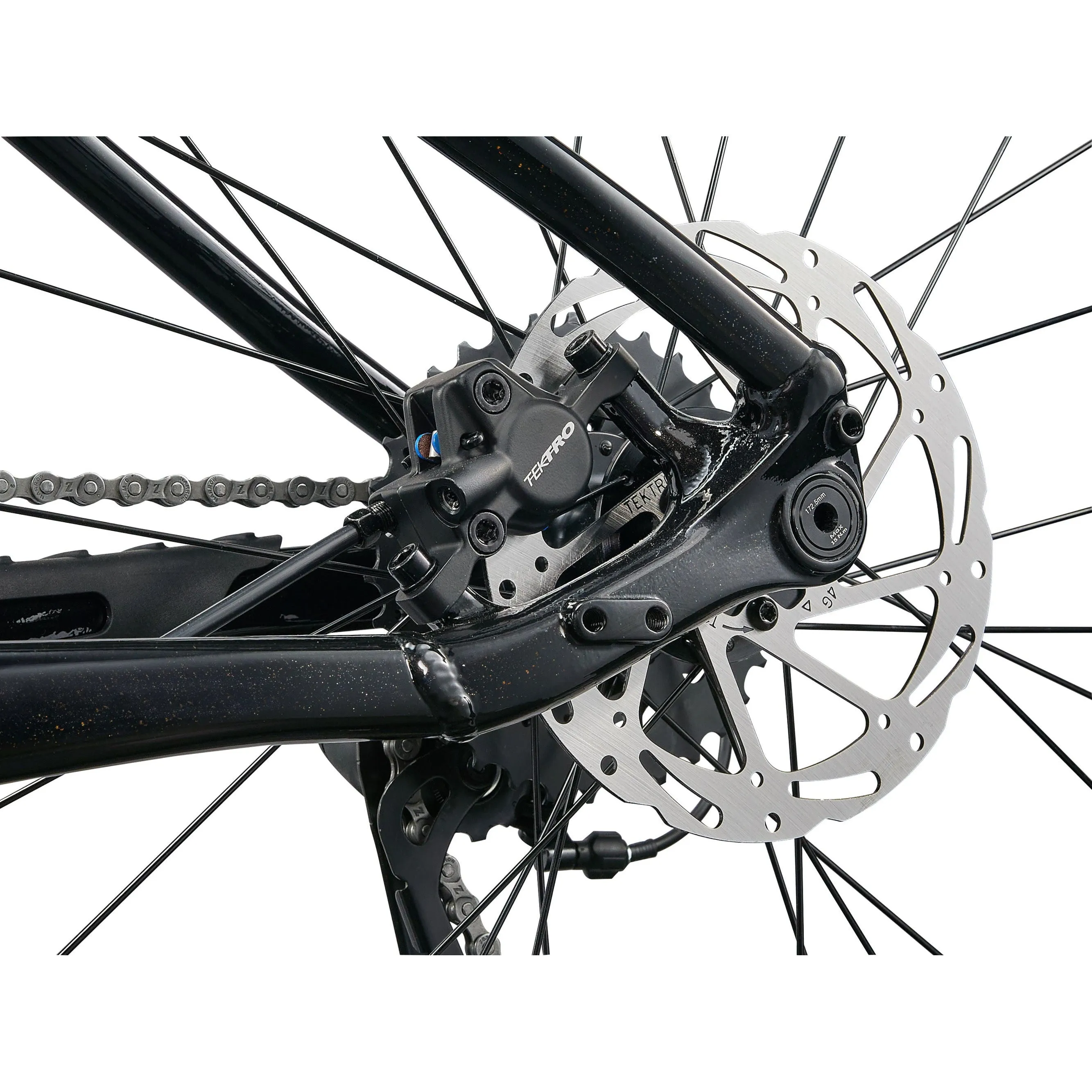

| Brakes | Tektro TKD143, hydraulic, Tektro rotors [F]180mm, [R]160mm |
| Brake Levers | Tektro TKD143 |
| Cassette | Shimano HG31, 11x34 |
| Chain | KMC 8.3 |

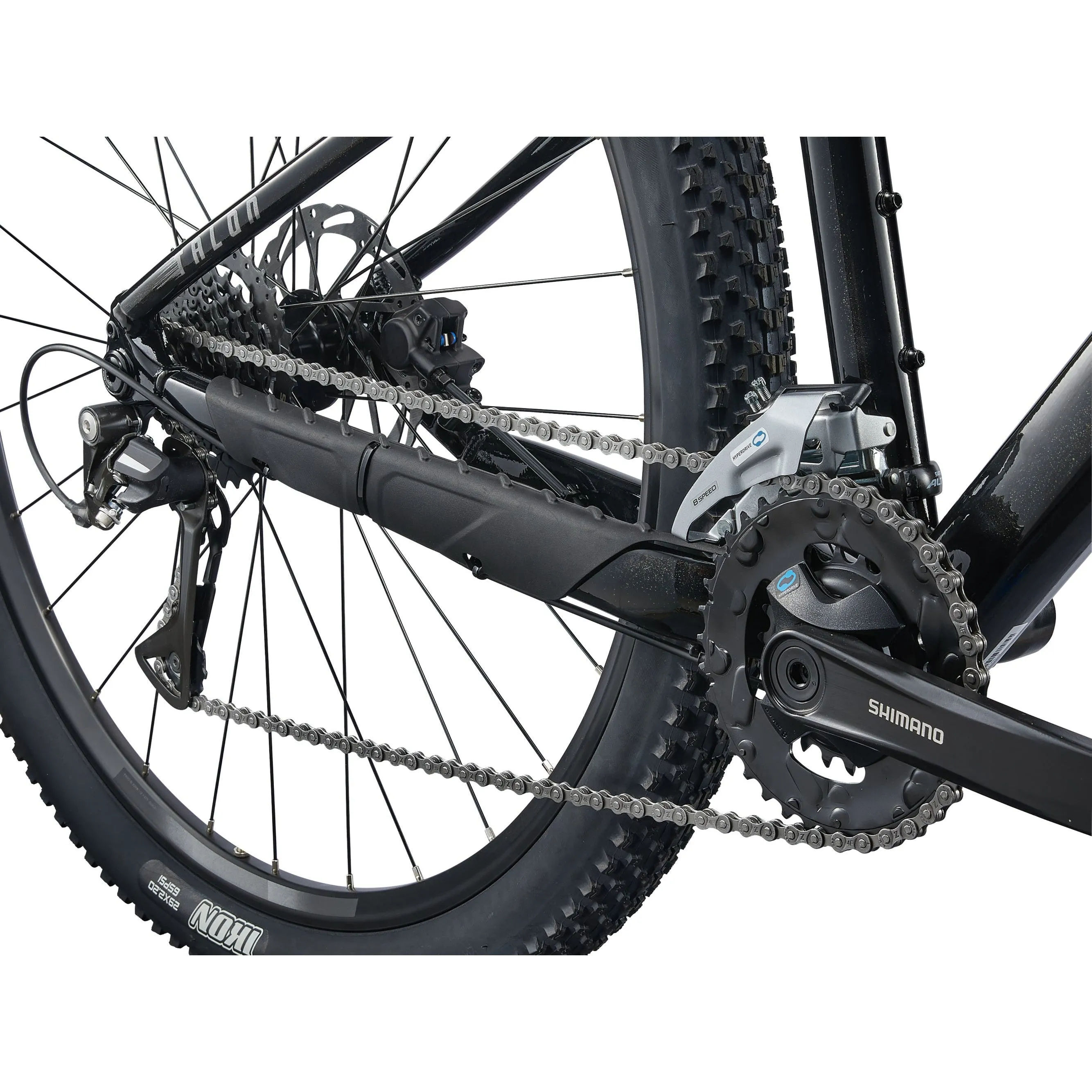

| Crankset | Shimano FC-M315, 22/36 XS: 170mm (27.5) S: 170mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) |
| Bottom Bracket | Cartridge |
| Rims | Giant GX03V 29 or 27.5, alloy, double wall |
| Hubs | Alloy, sealed |
| Spokes | Stainless, 14g |
| Tires | Maxxis Ikon 27.5" or 29x2.2", wire bead |
| Extras | 2.4" max tyre size, 32t max chainring size |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
