FUNCTIONS & CONTROLS

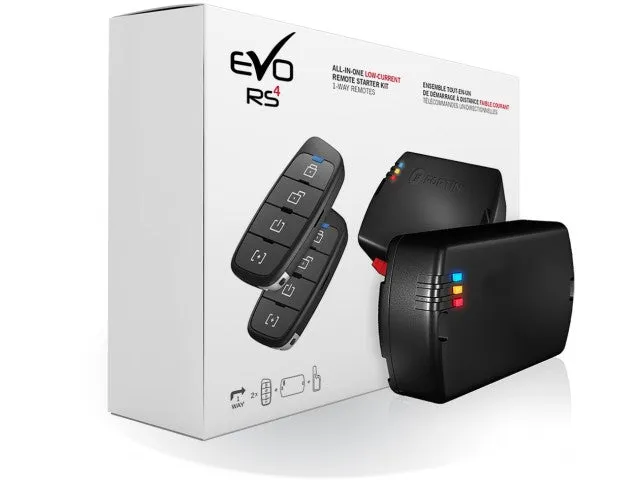

EVO-ALL-441 remote starter for low-current vehicles
Full immobilizer bypass
Built-in CAN alarm system (EVO-Alarm)
Remote start from the OEM remote ready (3x Lock or Lock-Unlock-Lock)
Works with smartphone remote starter app telematic devices
High-performance hardware (3x SAE CAN, 2x LIN, 1x J1850, 3x programmable circuit-board relays)
Compatible with DCryptor Technology
Compatible with all Fortin Low Current THAR T-Harnesses (sold separately)
PRODUCT FEATURES
Controls start, stop, lock and unlock functions and much more.
CE, IC and FCC certified devices.
Fast and easy installation
Superior warranty program
PARTS INCLUDED
2 x RM441 1-way 4-button long-range 2,500 feet (760 meters) remotes (FM 433 MHz)
1 x FMH Fortin Antenna (with programming button and clear blue LED indicators)
1 x Installation and programming guide
1 x User guide
1 x EVO-ALL control module [1]
1 x Warning label [3]
1 x Hood pin switch
1 x 20-pin general-purpose harness [4]
1 x 6-pin high power harness [4]
Installation cables [2]
LEGEND
[1] A firmware update may be required for the module to support the most recent vehicles.
[2] Using the 2-way datalink port with an equipped telematic unit greatly increases range and user integration.
[3] Because updated firmware and installation guides are posted regularly, we recommend that you update this module to the latest firmware and download the latest installation guide(s) before setup.
[4] Secure clip harness.
