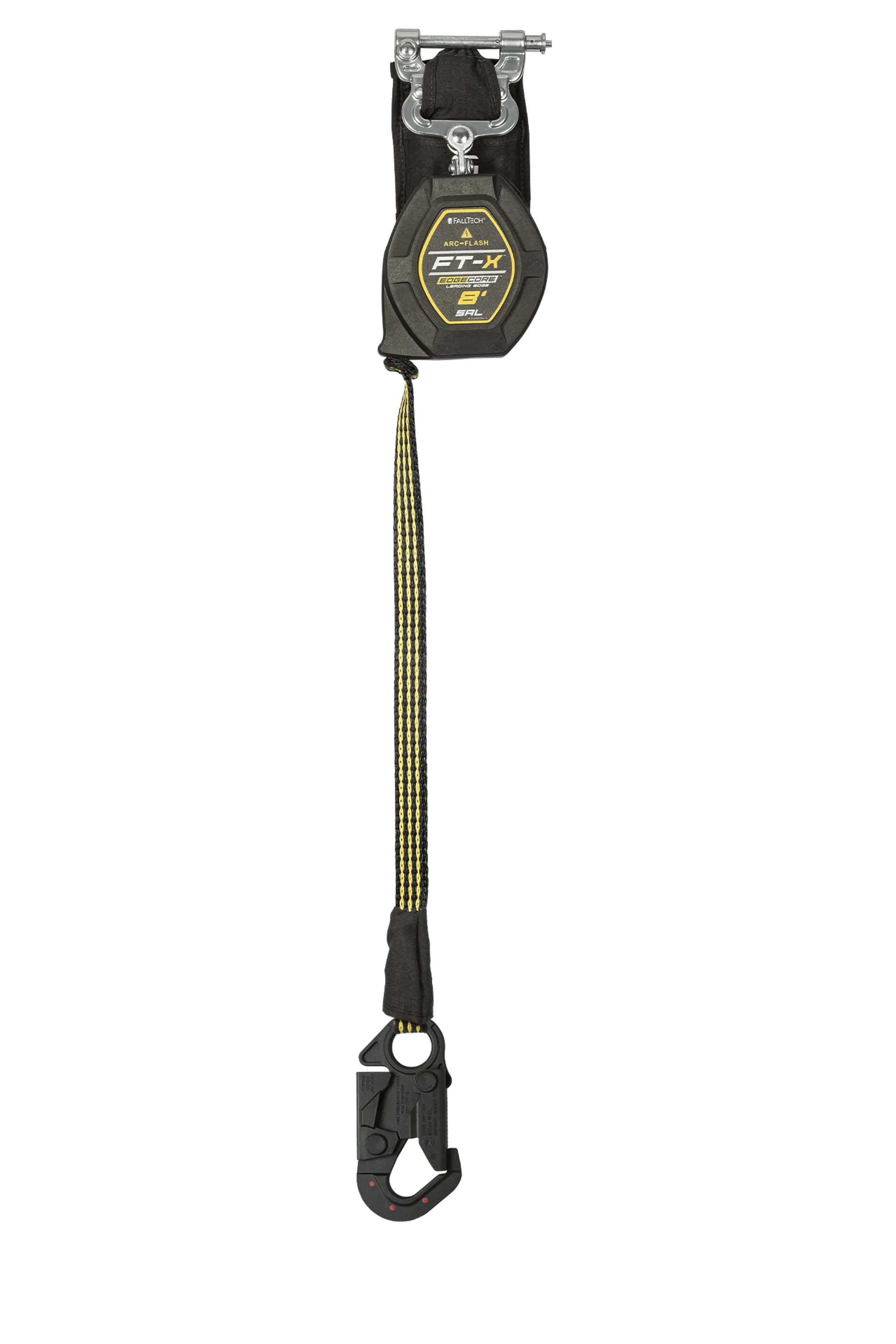

- Arc Flash rating AND Class 2 Leading Edge rating for the first time in an SRL.
- Features 100% Kevlar® version of FallTech's innovative EdgeCore™ synthetic lifeline
- Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity
- Features comprehensive fall clearance charts and tables inside the Kevlar®/Nomex® energy absorber cover
- Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively
- Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete
- Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.
- Complies with ANSI Z359.14-2021 Class 2 SRL-P
- Meets ASTM F887 Standards
Lifeline EdgeCore™ Arc Flash (Kevlar®); 5,000 lb min. static strength
Energy Absorber Polyester tear-away
Anchorage Connector Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Dorsal Connector Aluminum alloy; 3,600 lb min.
Static Strength 3,600 lb min.
ANSI SRL Class Class 2 SRL-P
Avg. Arrest Force 1,350 lb max.
Max. Arrest Force 1,800 lb
Max. Arrest Distance 42"
ANSI User Capacity 130 to 310 lb max.
OSHA User Capacity 130 to 420 lb max.
