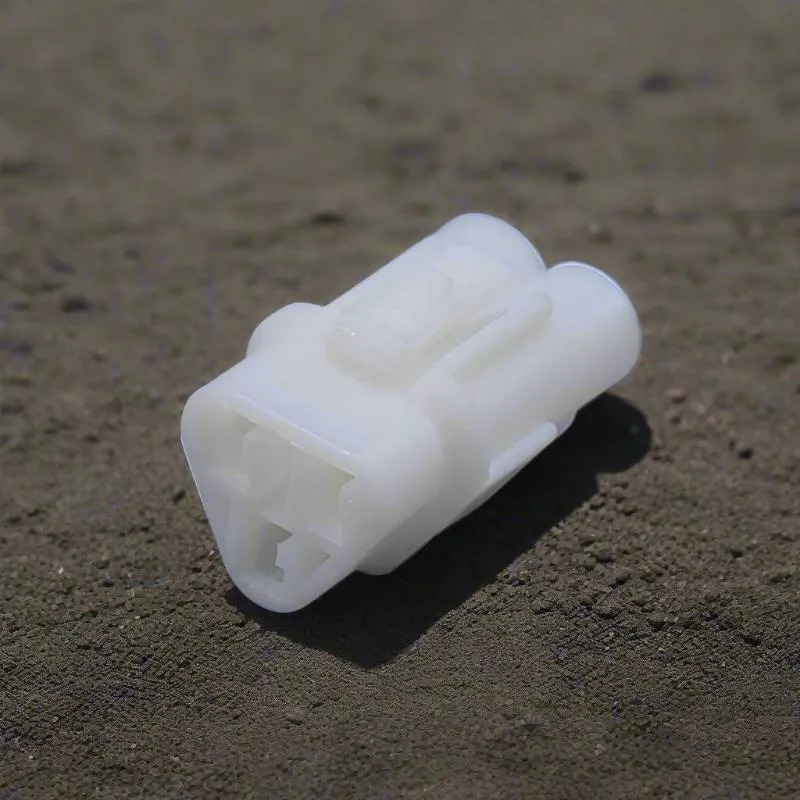

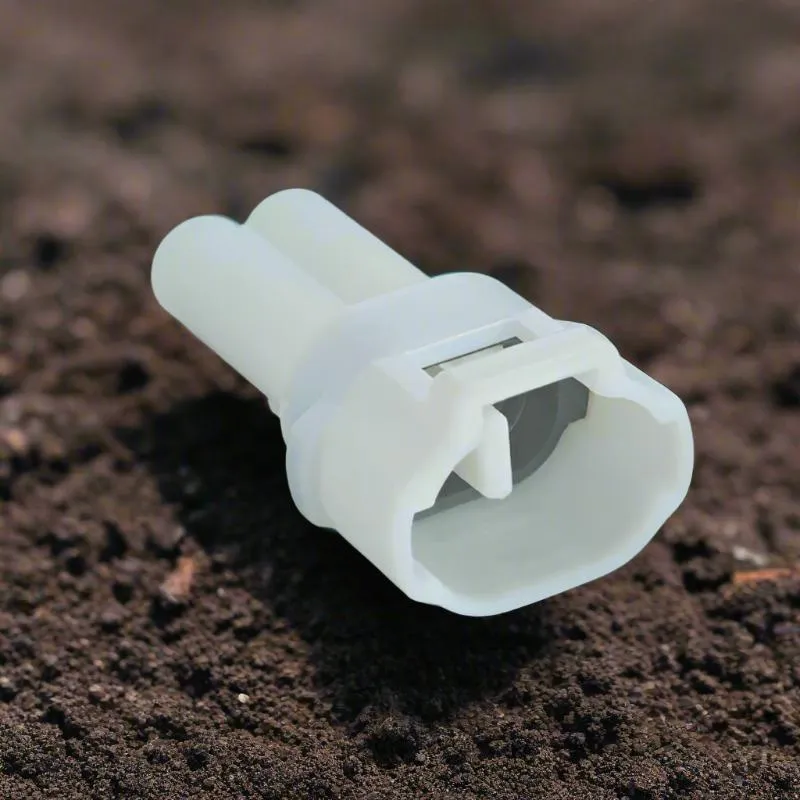

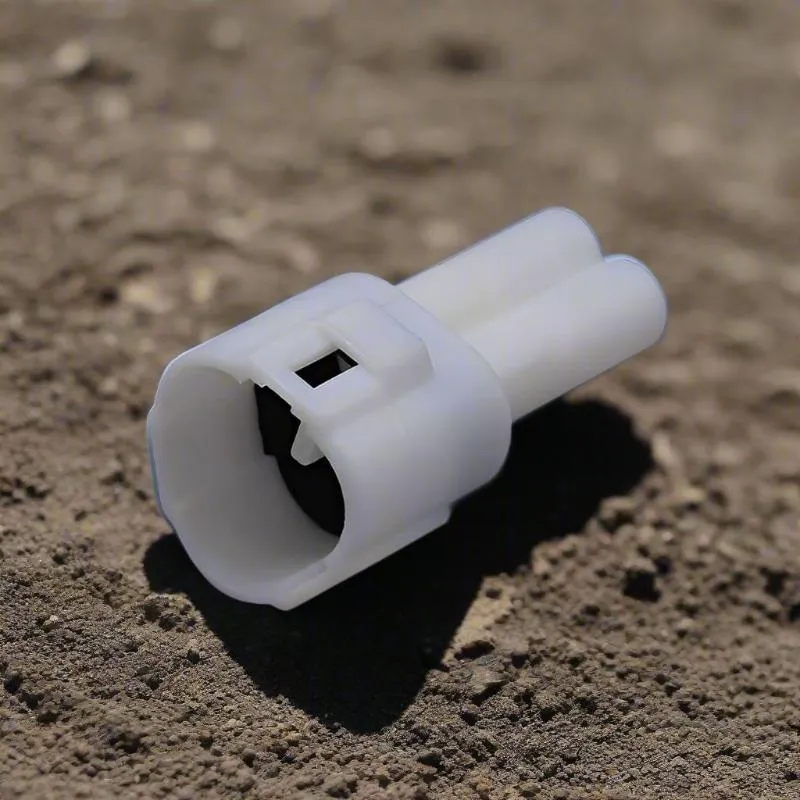

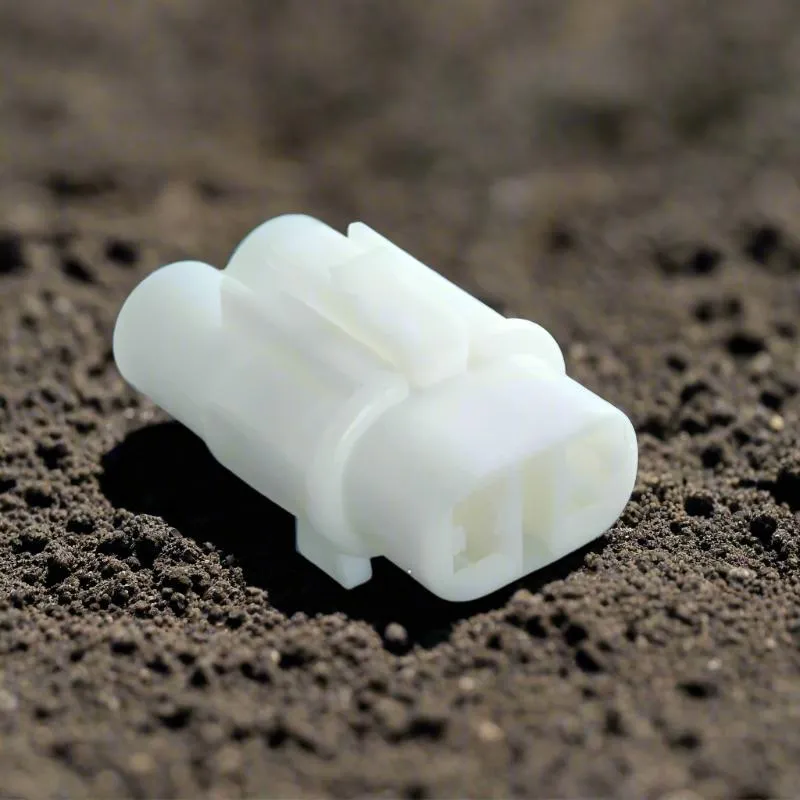

090AS Sealed Connector Kits

These sealed connector housing are commonly used in various OEM motorcycle applications.

Includes: Housing, Terminals & Seals

Material: PBT

Operating Temperature Range: -40 ~ 120 degrees C

Terminal Size: 2.2mm (090RS)

Pack Size: Sold Individually

090AS2R Male 2 Pin (Accepts Female Terminal):

Dimensions: L23.1mm x W13.9mm x H11.5mm

090AS2T Female 2 pin (Accepts Male Terminal):

Dimensions: L36.2mm x W19.8mm x H13.7 mm

090AS3R Male 3 Pin (Accepts Female Terminal):

Dimensions: L23.0mm x W14.9mm x H15.2mm

090AS3T Female 3 pin (Accepts Male Terminal):

Dimensions: L36.1mm x W17.8mm x H18.0mm

Accessories

Recommended Crimping Tools:

IWS-1424AB
